Indoor P1.95 Ultra-Thin LED Display |Double-Sided Digital Signage Manufacturer

Name: Indoor P1.95 Ultra-Thin LED Display |Double-Sided Digital Signage Manufacturer
Brand: Shenzhen H&S Innovation Technology Co., Ltd
SKU: P1.56/P1.9/P2.6/P2.9/P3.1
Price: 1,100.00 USD
Availability: InStock

製品の詳細

起源の場所: 中国深セン

ブランド名: HSCXLED

証明: KC CE CE-LVD CE-EMC ROHS FCC CCC ISO9001

モデル番号: P1.56/P1.9/P2.6/P2.9/P3.1

支払いと送料の条件

最小注文数量: 1セット

パッケージの詳細: 戦闘ケース/木製ケース/ハニークームボックス

受渡し時間: 10-15仕事日

支払条件: L/C、D/A、D/P、T/T、ウェスタンユニオン

供給の能力: 1000SET/30 DAY

お問い合わせ

製品の詳細

製品説明

製品の詳細

ハイライト:
                                                                                                                                                                                                                                                                                    Ultra-Thin Double-Sided LED Display, Slim Indoor LED Advertising Display, High-Definition Slim Digital Signage


製品名:	超薄型LEDディスプレイ	使用法:	屋内装飾ディスプレイ
モデル:	P1.56/P1.95/P2.6/P2.9/P3.1	タイプ:	LEDフルカラー
モジュールサイズ:	250*250mm	キャビネットのサイズ:	500*500mm
リフレッシュレート:	7680Hz	輝度:	600nit-3500nit (調整可能)
電源:	AC110V～240V	表示機能:	ビデオ/テキスト/画像/時間/3Dテキスト/オフィス/SWF

製品名:	超薄型LEDディスプレイ
使用法:	屋内装飾ディスプレイ
モデル:	P1.56/P1.95/P2.6/P2.9/P3.1
タイプ:	LEDフルカラー
モジュールサイズ:	250*250mm
キャビネットのサイズ:	500*500mm
リフレッシュレート:	7680Hz
輝度:	600nit-3500nit (調整可能)
電源:	AC110V～240V
表示機能:	ビデオ/テキスト/画像/時間/3Dテキスト/オフィス/SWF

製品説明

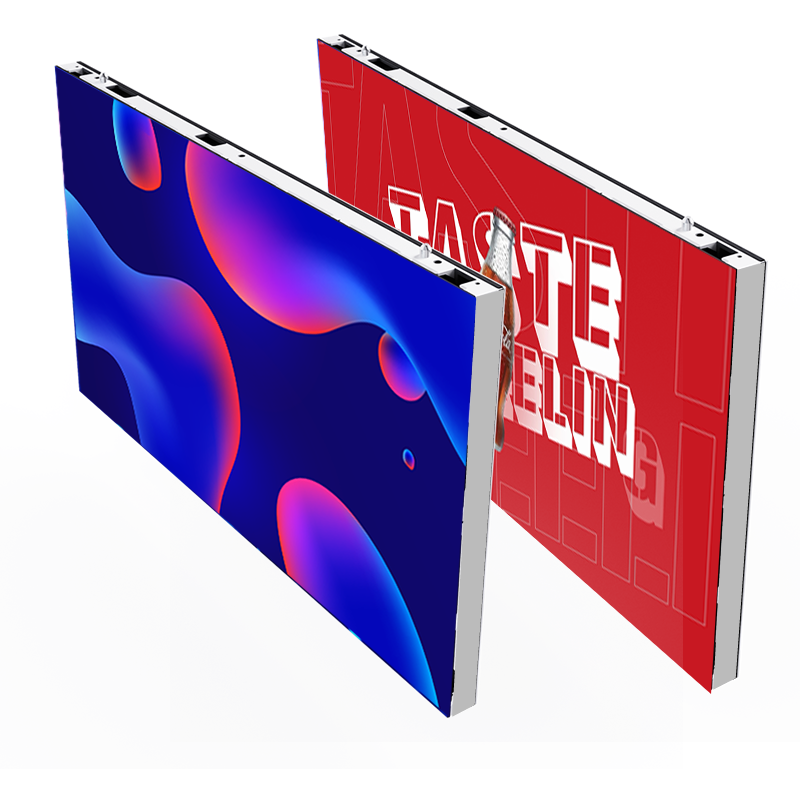

HSCXLED Indoor Ultra-Thin Double-Sided LED Display – High-Definition Slim Digital Signage

Looking for space-saving indoor signage? The HSCXLED Ultra-Thin Double-Sided LED Display offers 7680Hz refresh rate, 30mm thick cabinet, and dual-side synchronous/asynchronous playback. Ideal for malls, airports, and retail windows.

The Future of Space-Saving Indoor Advertising

Are you struggling to maximize advertising impact in narrow spaces like mall atriums, airport corridors, or retail windows? The HSCXLED Indoor Ultra-Thin Double-Sided LED Display is the ultimate solution. With a revolutionary thickness of only 30mm (double-sided) and a high-definition, this display breaks the limitations of traditional single-sided screens. It allows you to present content to two directions simultaneously without occupying extra floor space, making it a cost-effective and visually stunning choice for modern indoor environments.

Ultra-Thin Double-Sided LED Display Paramenters:

HSCXLED-Ultra-Thin Double-Sided LED Display
Model	P1.56	P1.95	P2.6	P2.9
Pixel pitch	1.56mm	1.95mm	2.6mm	2.976mm
LED configuration	SMD 1212	SMD 1515	SMD 2020	SMD 2020
Module size	250*250mm	250*250mm	250*250mm	250*250mm
Cabinet size	500mm*500mm	500mm*500mm	500mm*500mm	500mm*500mm
Scan mode	1/40 scan	1/32 scan	1/32 scan	1/21 scan
Pixel matrix per Module	160*160 dots	128*128 dots	96*96 dots	84*84 dots
Pixel density	409600(dots/sqm)	262144(dots/sqm)	147456(dots/sqm)	112896(dots/sqm)
Cabinet Resolution	320*320dots	256*256 dots	192*192 dots	168*168dots
Thickness of LED display	(24mm/30mm) (Single-sided/Double-sided)
Cabinet Material	Aluminum profile cabinet, lightweight and thin
Display size	Splicing any size according to the cabinet size
Maintenance Method	Pre-maintenance
Refresh rate	≥7680HZ
Brightness	650nit-3000nit (adjustable) LED display screen supports adjustable brightness on both sides
Ingress Protection	IP40
view angle(h/v)	≥ 160°/140°
AC Input Voltage	AC 110V/220V±10%,50Hz/60Hz
Gray Level	14-16bit
Working Temperature	-40 -50(℃)
Operating Humidity	10%~95% non-condensing
Media available	Datasheet, EDA/CAD Models, Other, Photo ,video,3D,and other formats
Mounting options	Lifting/Side Installation/Fixed Installation/ Ceiling Mount,/Custom Mount/Floor Stand/Wall Mount
Life Time	≥ 100000(Hours)

Top 4 Reasons to Choose HSCXLED Ultra-Thin Double-Sided Display

1. Truly Ultra-Thin & Lightweight Structure

Space is premium in indoor settings. Our die-cast aluminum cabinet is only 30mm thick for the double-sided version. It significantly reduces the load-bearing pressure on walls or ceilings and can be installed in narrow columns, aisles, and window displays where traditional bulky screens cannot fit .

2. Dual-Sided Display Flexibility (Sync & Async)

Why buy two screens when one works better? This display supports both synchronous and asynchronous playback. You can show the same promotional video on both sides to amplify the message, or display different content (e.g., a product ad on the front, and a QR code/price list on the back) to target different audiences simultaneously. This doubles your information release efficiency.

3. Cinema-Grade Visual Performance

Equipped with high-quality LED lamps and a 7680Hz refresh rate, the Ultra-Thin display delivers crisp, vivid, and delicate images with high contrast and a wide color gamut. Whether it is bright retail lighting or a dimly lit lounge, the adjustable brightness (650-3000 nits) ensures your content is always clear and eye-catching .

4. Easy Front Maintenance & Smart Control

Time is money. The Ultra-Thin display modular design allows for front maintenance—you can replace a single module quickly without needing rear access. Coupled with an intelligent control system (NovaStar/Colorlight compatible), you can manage content, adjust brightness, and diagnose faults remotely via WiFi, LAN, or cloud, reducing operational costs.

Ideal Application Scenarios

Where can this ultra-thin double-sided screen be used?

Shopping Malls & Retail Stores: Hang in atriums or place in windows to attract customers from both inside and outside.

Airports & Transportation Hubs: Display flight info on one side and ads/public service info on the other.

Exhibition Halls & Museums: Show exhibit details on both sides for visitors walking in either direction.

Corporate Lobbies: Display company culture on one side and visitor guidelines on the other.

Quality Assurance & Certifications

As a professional manufacturer based in Shenzhen, China, HSCXLED ensures strict quality control. This product is certified with KC, CE, ROHS, FCC, CCC, and ISO9001, guaranteeing safety, durability, and compliance with international standards.

Frequently Asked Questions (FAQ)

Q: Can I customize the size of the display?

A: Yes, the display supports seamless splicing. You can customize any size you need based on the 500x500mm cabinet unit .

Q: What control systems does it support?

A: It is compatible with leading systems like NovaStar and Colorlight, supporting HDMI, WiFi, and asynchronous cloud control .

Q: Is the brightness adjustable on both sides independently?

A: Yes, the LED display screen supports adjustable brightness on both sides, allowing for different brightness levels depending on the ambient light of each side.

Shenzhen H&S Innovation Technology Co., Ltd (HSCXLED) - Professional LED Display Manufacturer.
