製品の詳細
起源の場所: 深セン
ブランド名: HSCXLED
証明: KC CE CE-LVD CE-EMC ROHS FCC CCC ISO9001
モデル番号: P1.25/P1.5/P1.86/P2/P2.5
支払いと送料の条件
最小注文数量: 1セット
パッケージの詳細: 戦闘ケース/木製ケース/ハニークームボックス
受渡し時間: 15~18 営業日
供給の能力: 1000セット
製品名: |
携帯型LEDポスターディスプレイ |
仕様: |
ビデオウォール、LEDスクリーン、デジタルポスター |
製品タイプ: |
両面表示ポスタースクリーン |
輝度: |
600-1000(カスタマイズ可能) |
リフレッシュレート: |
3840hz~7680hz |
色の濃さ: |
14-16ビット |
最大/平均電力: |
600/180 (W/㎡) |
動作温度: |
-20℃~60℃ |
包装: |
フライトケースまたは木製ケース |
寿命: |
寿命≧100000H、MTBF≧50000H |
L取り付けオプション: |
床の立場の表示 |
制御方法: |
アプリ制御、携帯電話制御、USB、Wi-Fi |
製品名: |
携帯型LEDポスターディスプレイ |
仕様: |
ビデオウォール、LEDスクリーン、デジタルポスター |
製品タイプ: |
両面表示ポスタースクリーン |
輝度: |
600-1000(カスタマイズ可能) |
リフレッシュレート: |
3840hz~7680hz |
色の濃さ: |
14-16ビット |
最大/平均電力: |
600/180 (W/㎡) |
動作温度: |
-20℃~60℃ |
包装: |
フライトケースまたは木製ケース |
寿命: |
寿命≧100000H、MTBF≧50000H |
L取り付けオプション: |
床の立場の表示 |
制御方法: |
アプリ制御、携帯電話制御、USB、Wi-Fi |
Trifold Led Poster Screen/ Double Sided led display
Foldable GOB Ultra Slim Double Sides Indoor Led Poster Display
Indoor Portable Smart Advertising Player Led Screen Poster Display for Shopping Mall
Portable Slim Advertising Digital Signage Video Screen
Indoor Smart Led Poster Display
![]()

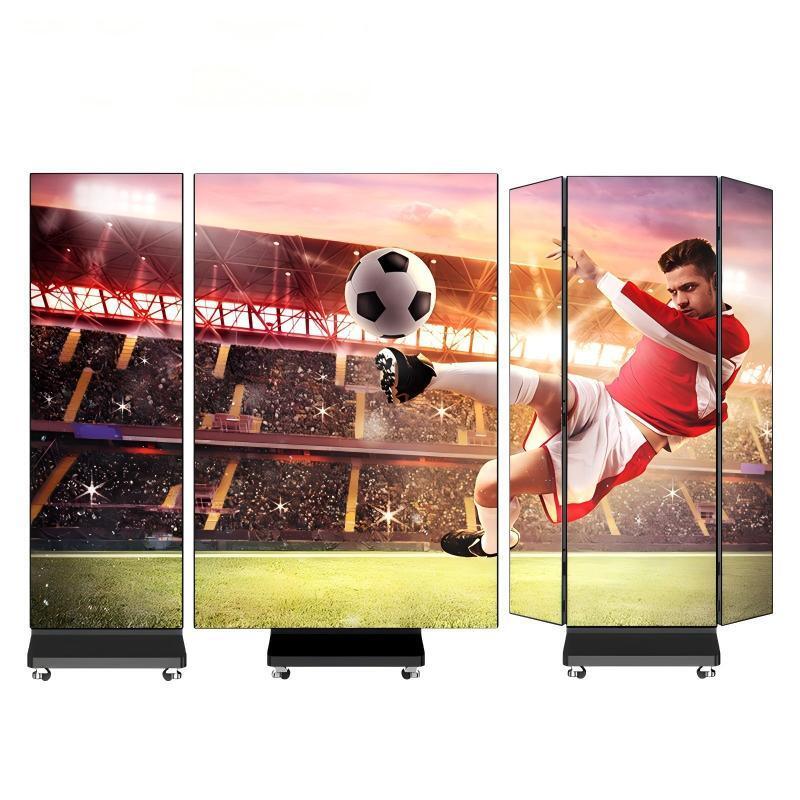

Foldable LED Poster Display introduction:
This Removable Foldable LED Poster Display Screen offers versatile advertising solutions . ≥95% luminance uniformity, and an 8000:1 contrast ratio, it ensures vibrant visuals. The die-casting aluminum build provides durability, while GOB protective technology enhances reliability. With multiple control methods including Wifi, Bluetooth, and USB, as well as IoT connectivity and remote content management, it delivers smart operation.Led poster screen is also called mirror LED display screen.It can be folded to a double sided LED display.
PRODUCT SIZE:Three-fold (double-sided) LED poster screen display
Unfold single-sided appearance size: 1280 * 2070 * 50mm(W*H*T)
Folding double-sided appearance size: 640 * 2070 * 110mm(W*H*T)
The three-fold mobile LED poster screen can be used for two purposes. When unfolded, it is a large screen 4.2ft by 6.3ft(1280mmx1920mm). After folding the two sides back, it becomes a double-sided poster screen with a single-sided display area of 640mmx1920mm.
Tri-fold LED Poster display Paramenters:
| HSCXLED-Trifold LED Poster Display | |||||
| Model | P1.25 | P1.53 | P1.86 | P2 | P2.5 |
| Pixel pitch | 1.25mm GOB | 1.53mm GOB | 1.86mm GOB | 2mm GOB | 2.5mm GOB |
| LED configuration |
SMD 1010 | SMD 1212 | SMD 1515 | SMD 1515 | SMD 2020 |
| Pixel density | 640000(dots/sqm) | 422500(dots/sqm) | 288888(dots/sqm) | 250000(dots/sqm) | 160000(dots/sqm) |
| Module size | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
| Scan mode | 1/64 scan | 1/52 scan | 1/43 scan | 1/40 scan | 1/32 scan |
| Pixel matrix per Module | 256*128 dots | 208*104 dots | 172*86 dots | 160*80 dots | 128*64 dots |
| Screen size | 1280mm*1920mm | ||||
| Cabinet Resolution | 1024*1536 dots | 832*1248 dots | 688*1032 dots | 640*960 dots | 512*768dots |
| Cabinet Weight | 76kg/set | ||||
| Cabinet Size | Unfolding:W1280*H1920mm(lncludes feet:W646*H2060mm*L550mm) | ||||
| Refresh rate | 3840-7680hz | ||||
| Brightness | 650-1000nit | ||||
| Ingress Protection | IP40 | ||||
| Viewing Angle | 160°/160° | ||||
| AC Input Voltage | AC 110V/220V±10%,50Hz/60Hz | ||||
| Gray Level | 14-16bit | ||||
| Working Temperature | -40 -50(℃) | ||||
| Operating Humidity | 10%~95% non-condensing | ||||
| Video Format | Support RM,FLV,AVI,MP4 and other mainstream video formats | ||||
| Display Function | Video/Text/Picture/Time/3D Text/Office/SWF | ||||
| Controllnterface | Wifi/4G/USB HDMI*2,USB2.0*2,AUX*1 | ||||
| Operating Equipment | Phone, iPad, PC, Internet | ||||
| Life Time | ≥ 100000(Hours) | ||||
| Control System | Novastar,Colorlight, HuiDu | ||||
![]()
Tri-fold LED Poster Screen advantage:
Three fold design (convenient for transportation, saving transportation costs), both single-sided and double- sided displays are very convenient;
Provide plugs according to customer requirements, and they can be used immediately after being powered on;
Content publishing can be done through mobile app/computer app/computer network cable/remote network control;
Up to 6 units can be cascaded to splice the entire screen, with HDMI cable cascading for plug and play functionality;
Supports synchronous and asynchronous operations, and can display videos/images/ppt/word, etc.
GOB process, moisture-proof, waterproof, and anti- collision.
Foldable led poster Screen Features:
Ultra Clear Picture Quality
Three-folding poster led display, new design technology, fine picture quality, more natural,High brightness and high definition and realisticimaging.
Universal Wheel Design
Comes with 4 swivel wheels, making it easier to move and place wherever you want,you can glide the display to your desired location with minimal effort. One person can easily maneuver it.
Plug & Play:
Three-foldable LED poster display is a very easy LED display. Plug and Play,After sending the program, LED poster to automatically play video, pictures, text and other programs. There is no need to operate any work afterwards.
Reliability &Performance:
Three-folding led poster display add GOB technology is adopted, which makes the screen body waterproof, dustproof, moisture-proof, and impact resistant, Dust-proof,Screen surface waterproof extending the service life of the display screen.Consistent color uniformity across folding sections.Robust construction maintains alignment through repeated folding cycles.
Flexible Control System
Can be controlled by WiFi, mobile phone, USB,EHTERNET,HDMI etc., which is very convenient and fast.The system supports synchronous/asynchronous ,It also supports synchronous display for scenarios such as meetings and live broadcasts.
Rapid Multi-Screen Integration
Quick-lock mechanism enables seamless splicing.Modular expansion for customized large-scale displays.Instant transformation from single unit to video wall configuration .
Integrated Audio-Visual System
Built-in high-fidelity speakers synchronize sound with content.Enhanced audience engagement through immersive experiences.All-in-one solution eliminates external audio equipment needs .
Effortless Front-Access Maintenance
Led poster screen supports front maintenance,Fully front-serviceable modules enable quick replacement.Reduced downtime through tool-free maintenance access.Streamlined operational efficiency for continuous operation.
Portable Folding Led Display Fold LED Screen Poster
Foldable Advertising Indoor Digital Gob LED Poster Display
P1.25 P1.53 P1.86 P2 P2.5 Floor Standing Foldable Led Poster Screen
Indoor Led Poster Display
Inovation Folding Design, Space-saving: Folds to reduce volume by 50%,optimizing storage and transport compared to traditional posters; when folded, it transforms into a double-sided screen, capable of displaying the same or different contents on each side;
Ready to use: No any installation needed, just unfold, then plug and play for instant operation;
6 Units, 5-Minute Seamless Setup: With a flexible, magnetic detachable border and fast-lock splicing system, six units can be seamlessly connected in just 5 minutes-much faster and smoother than traditional poster installations;
Not Only Six Unit: The use of aviation plug data port can realize the splicing of multiple screens, infinite splicing, infinite possibilities.
LED poster display application:
led poster display as a display device in the exhibition, it supports the rapid splicing of multiple devices, and the screen splicing can be seamless, which can meet the display needs of various sizes and shapes.
LED mirror screen for Commercial advertising promotion,can be used in shopping malls, retail stores and other places to promote new products, promotional activities, brand image display, etc.Suitable for public places such as subway stations, airports, hotels, etc.Exhibition booths and trade shows.Corporate events and presentations.Hospitality venues and entertainment spaces.Educational institutions and conference facilities.
![]()
![]()
