Shenzhen H&S Innovation Technology Co., Ltd info@hscxled.com 86-134-2892-1577
製品の詳細
起源の場所: 深セン
ブランド名: HSCXLED
証明: KC CE ROHS FCC CCC ISO9001
モデル番号: P6.67
支払いと送料の条件
最小注文数量: 1セット
パッケージの詳細: 木製ケース/ハニカムボックス/ファイトケース
受渡し時間: 10-15workdays
支払条件: L/C、T/T、D/A、D/P、ウェスタンユニオン、マネーグラム
供給の能力: 1000SET/30 DAY
製品名: |
屋外広告LEDディスプレイ |
モデル番号: |
屋外-P6.67 |
応用: |
アウトドア、広告 |
ピクセル: |
6.67mm |
輝度: |
10000ニット |
リフレッシュレート: |
3840-7680HZ |
キャビネットのサイズ: |
960*960mm |
材料: |
アルミニウムLEDディスプレイ |
AC入力電圧: |
AC100～240V±10%/50～60Hz |
メンテナンスタイプ: |
前部と後部のメンテナンス |
キーワード: |
屋外での広告ディスプレイ |
画面の種類: |
フロント サービス LED スクリーン |
製品名: |
屋外広告LEDディスプレイ |
モデル番号: |
屋外-P6.67 |
応用: |
アウトドア、広告 |
ピクセル: |
6.67mm |
輝度: |
10000ニット |
リフレッシュレート: |
3840-7680HZ |
キャビネットのサイズ: |
960*960mm |
材料: |
アルミニウムLEDディスプレイ |
AC入力電圧: |
AC100～240V±10%/50～60Hz |
メンテナンスタイプ: |
前部と後部のメンテナンス |
キーワード: |
屋外での広告ディスプレイ |
画面の種類: |
フロント サービス LED スクリーン |
High Brightness Energy Saving Outdoor All Weather Advertising LED Display Screen
Waterproof IP65 8K Outdoor High Brightness LED Billboard Panel for Street Advertising

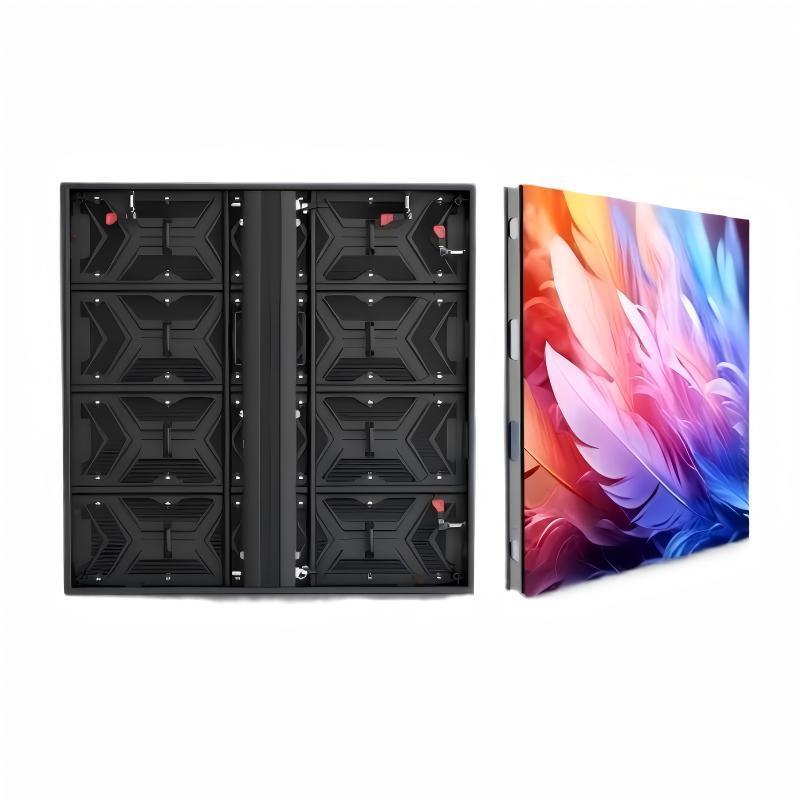

Front Service P6.67 High Brightness aluminum LED display screen
| Model | P6.67 |
|---|---|
| Pixel pitch | 6.67mm |
| LED configuration | SMD2727 |
| Module size | 480*320mm |
| Scan mode | 1/6 scan |
| Pixel matrix per Module | 72*48dots |
| Pixel density(dots/sqm) | 22477 |
| Cabinet size | 960*960mm |
| Refresh rate | ≥3840HZ |
| Box material | profile aluminum |
| Brightness | 5500-10000nit |
| Ingress Protection | IP67 |
| Weight | ≤28kg/m² |
| Optimal Horizontal Viewing Angle | ≥ 160° |
| Optimal Vertical Viewing Angle | ≥ 140° |
| AC Input Voltage | AC 110V/220V±10%,50Hz/60Hz |
| Gray Level | 14bit |
| Working Temperature | -20 -50(℃) |
| Maximum power consumption | 600W/m² |
| average power consumption | 200W/m² |
| Operating Humidity | 10%~95% RH |
| Video Format | Support RM,FLV,AVI,MP4 and other mainstream video formats |
| Picture Format | Support JPG,PNG,and other image formats |
| Life Time | ≥ 100000(Hours) |
Advertising publish,retail store,shopping mall,display of dishes,welcome display,self-service business,exhibition hall,Restaurant & Hotel Supplies,education,medical treatment...
High-Brightness,Energy-Saving Aluminum LED Display
HSCXLED-Outdoor aluminum LED screen support multiple module model selections,Use standard universal 480*320mm size display module.Aluminum profile box, light and thin,The product has high brightness, high refresh rate,Modular design, low installation and maintenance costs, fast speed, supports front and rear maintenance and high protection level.
No need for a rear access channel,offering a sleek appearance and cost-effective structure.
Outdoor display screen has high requirements on protection level. HSCXLED-Outdoor aluminum LED screen front and rear protecting level is IP68/IP67. With the highest standard of waterproofing. All-day work, fully capable of any harsh environment, features with anti-corrosion, moisture-proof etc.
outdoor LED display screens , high temperature durability, fast heat dissipation with Noise-free, it is able to used at high temperature for a long time without deformation.
Our IP65 waterproof LED modules offer exceptional protection against extreme weather ensuring stable performance and longevity. The fanless power supply with waterproof seals further guarantees durability and reliable operation.
The screen display is smooth without lag,with a high refresh rate of up to3840-7680Hz.fast response speed,and no dragging,lagging,or flickering.The screen display is smooth and stable.High guality modules,Modular design for easy splicing true color high stability and long life.
For cloud control,Wi-Fi control,USB Disk,4G/5G,our smart control system are allowed to make it.
Outdoor LED Display/Outdoor aluminum LED screen
Outdoor advertising led display/Outdoor Waterproof Aluminum Profile LED Display
